Understanding What is a Junction Box: Key Concepts Explained
Junction boxes are everywhere in Canadian electrical systems and yet they’re often overlooked. Many people think of them as simple containers, but they play a much larger role in safety and reliability. In Canada, properly selected and installed junction boxes help reduce the likelihood of shocks, shorts, and fires by keeping terminations enclosed, accessible, and protected in accordance with the Canadian Electrical Code, Part I (CEC), CSA C22.1. Their hidden impact on infrastructure—from municipal streetscapes to industrial plants—will change how you see every building and city block.
Table of Contents
- Defining A Junction Box: Basic Understanding
- Importance Of Junction Boxes In Electrical Systems
- How Junction Boxes Facilitate Connectivity And Safety
- Key Components And Functionality Of Junction Boxes
- Practical Applications Of Junction Boxes In Civil Engineering
Quick Summary
| Takeaway | Explanation (Canada) |
|---|---|
| Junction boxes ensure electrical safety | They protect connections from contact and environment, supporting safe installations that align with the CEC and relevant CSA standards. |
| Accessibility is crucial | Boxes must remain accessible after installation for inspection and maintenance, as required by the CEC (no buried/hidden splices without an approved, accessible enclosure). |
| Materials drive performance | Polymer concrete composites, galvanized steel, and aluminium offer different strengths. Select based on exposure, corrosion, tamper/impact risk, and load rating. |
| Vital for infrastructure | They are key nodes in municipal lighting, traffic control, telco/ITS, and industrial power distribution throughout Canadian climates. |
| Regulatory compliance is mandatory | Conformance with CEC (CSA C22.1), enclosure/type ratings (CSA C22.2), and provincial OHS/electrical authorities (e.g., ESA Ontario, Technical Safety BC) is required. |
Defining a Junction Box: Basic Understanding
A junction box is a protective enclosure for wire splices, terminations, and devices. In Canada, its selection and use are governed by the Canadian Electrical Code, Part I (CSA C22.1). The box keeps terminations enclosed, organized, and accessible—improving safety and simplifying maintenance.
Core Purpose and Function
At its core, a junction box houses and protects electrical connections while keeping them serviceable. Under the CEC, boxes must be suitably rated, covered, and accessible after installation.
- Provide a secure, enclosed location for splices and terminations
- Shield connections from moisture, debris, pests, and physical damage
- Allow inspection, testing, and future modifications without demolition
- Support compliance with CEC rules and provincial authority requirements
Construction and Design Considerations
Canadian conditions—freeze–thaw cycles, de-icing salts, coastal air, and road loads—demand robust materials and ratings. Common materials include:
- Polymer concrete composites
- Galvanized steel
- Fibre-reinforced polyester (FRP)*
- Cast aluminium
*Note: FRP is a market alternative; CIF manufactures polymer concrete composite products.

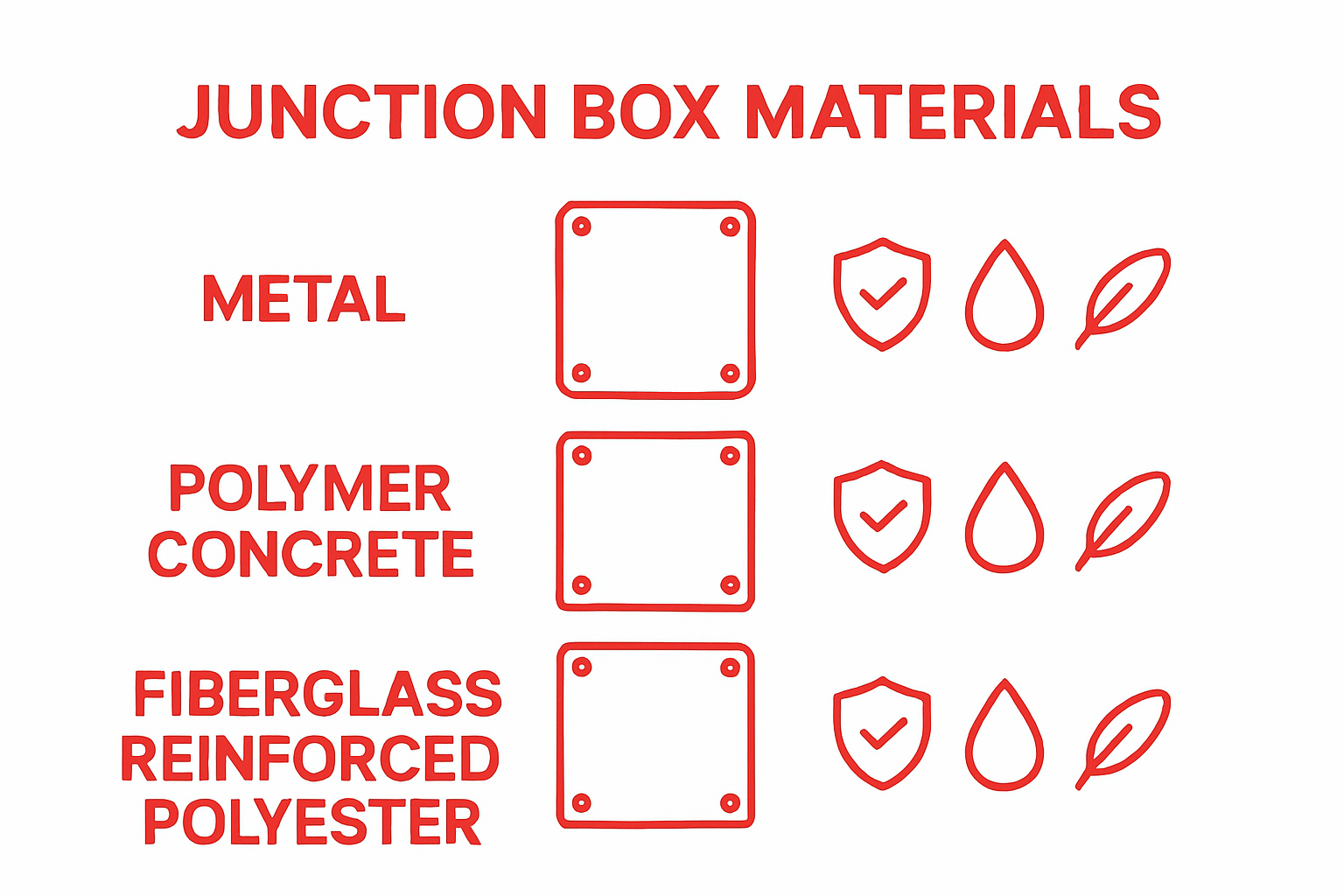

Below is a high-level comparison to guide selection for Canadian environments.
| Material | Key Characteristics | Typical Canadian Applications |
|---|---|---|
| Polymer concrete composites | Corrosion/chemical resistant, stable in freeze–thaw, high strength-to-weight | Municipal/utility networks, boulevard/sidewalk and traffic-rated lids, coastal regions |
| Galvanized steel | High impact resistance; galvanizing protects against rust | Industrial interiors/exteriors, protected roadway cabinets |
| Fibre-reinforced polyester (FRP) | Non-conductive, lightweight; requires UV- and fire-performance consideration | Specialty outdoor enclosures where non-conductivity is prioritized |
| Cast aluminium | Good heat dissipation, lower mass; consider salt-spray/corrosion controls | Industrial/process areas, transit/telco pedestals |
For Canadian civil/utility applications, polymer concrete composites offer excellent durability, corrosion resistance, and stable performance through freeze–thaw cycles.
Professional Applications and Importance
Canadian civil, utility, and industrial sectors rely on junction boxes for underground distribution, traffic control, ITS/smart city devices, and renewables. Provincial/territorial electrical authorities (e.g., ESA in Ontario, Technical Safety BC, APEGA/AHS in Alberta contexts, RBQ in Québec) expect installations to follow the CEC and applicable CSA C22.2 enclosure/type standards as well as local bulletins or directives.
Importance of Junction Boxes in Electrical Systems
Junction boxes are critical infrastructure—not merely “wire tidy” points. They protect people and property, organize networks, and demonstrate compliance in inspections.
Safety and Risk Mitigation
In Canada, safety expectations are set by the CEC and enforced by provincial regulators and OHS agencies (e.g., WorkSafeBC, Alberta OHS). Junction boxes help to:
- Prevent contact with live parts
- Contain arcing/sparking events and support proper bonding/grounding
- Shield wiring from moisture, salt, dust, and mechanical damage
- Reduce the risk of electrical fires and nuisance outages
Structural Integrity and System Performance
- Create systematic, labelled connection points
- Enable efficient maintenance and device upgrades
- Manage routing/strain relief to extend conductor and device life
- Support network segmentation and load distribution
Regulatory Compliance and Professional Standards
Compliance typically involves:
- CEC (CSA C22.1) rules for enclosures, wiring methods, bonding/grounding, accessibility
- CSA C22.2 enclosure/type ratings (e.g., Type 1/3R/4/4X/6P) and device listings
- IEC 60529 (IP) ingress ratings (often published alongside CSA Type ratings)
- Municipal/agency standards for traffic-rated lids, security, and asset identification (e.g., Transportation Association of Canada guidelines adopted locally)
How Junction Boxes Facilitate Connectivity And Safety
Electrical Connection Management
- Consolidate multi-circuit splices and device terminations
- Provide standard interfaces for luminaires, traffic signals, sensors, EVSE, and communications
- Enable modular upgrades (e.g., LED conversions, ITS add-ons) without civil rework
Safety Containment And Protection
CIF heavy-duty junction boxes and service boxes & vaults are engineered to:
- Insulate and segregate live terminations
- Maintain secure covers with tamper-resistant hardware
- Resist corrosion and road salts; maintain integrity through freeze–thaw
- Support traffic or boulevard load requirements where specified
Infrastructure Resilience And Reliability
- Materials and seal systems tuned to Canadian climate extremes
- Type/IP ratings to manage rain, snowmelt, splash, and dust
- Load-rated components for sidewalks, boulevards, and traffic lanes (as specified by the authority having jurisdiction)
- Compatibility with Canadian wire sizes, bonding/grounding hardware, and identification practices
Key Components And Functionality Of Junction Boxes
Structural Components And Materials
CEC and CSA standards influence the following components and features:
| Component/Feature | Description | Canadian Importance |
|---|---|---|
| Protective enclosure | Outer housing that resists impact and environmental damage | Extends service life in freeze–thaw, de-icing salts, and UV exposure |
| Internal mounting provisions | Brackets, backplates, or rails | Supports devices and keeps conductors neat for inspection |
| Cable entry/exit points | Knockouts, hubs, glands with strain relief | Maintains Type/IP rating; prevents pull-out and water ingress |
| Bonding/grounding hardware | Lugs, bars, and bonding jumpers | Meets CEC bonding requirements and fault-current paths |
| Secured covers | Gasketed or sealed lids; locking/tamper-resistant fasteners | Public safety, vandal resistance, and water tightness |
| Identification & labelling | Embossed lids, asset IDs, circuit labels | Municipal asset management and rapid maintenance |
- External protective enclosure
- Internal mounting brackets/plates
- Rated cable entries with strain relief
- Bonding/grounding provisions to CEC
- Gasketed, secure covers with appropriate hardware
Electrical Connectivity Features
- Multiple splice/termination points and terminal blocks
- Segregation for power vs. controls/communications where required
- Accommodation for Canadian conductor sizes and insulation types
- Provisions for surge protection and lighting contactors (where specified)
Environmental Protection And Performance
- Corrosion resistance for coastal/prairie/salt-belt conditions
- Temperature range suitable for Canadian winters and heat events
- Ingress protection (Type/IP) appropriate to location
- Impact and load resistance suited to boulevard or traffic areas
Practical Applications Of Junction Boxes In Civil Engineering
Municipal Infrastructure Networks
- Underground power distribution for streetscapes and parks
- Streetlighting feeds, handholes, and pole bases
- Traffic signals, ITS, and smart-city sensor networks
- Telecom/fibre access and distribution nodes
- Stormwater/utility monitoring and control
Industrial And Utility Sector Applications
- Manufacturing and process plants (harsh, chemical, or washdown areas)
- Renewables (PV, wind, BESS) combiner/collection points
- Water/wastewater facilities and remote instrumentation
- Substation and distribution network terminations
Environmental And Technological Integration
- IoT and edge devices with secure, rated enclosures
- Remote monitoring (SCADA/IIoT) with service access
- Scalable provisions for future loads (EVSE, sensors, lighting controls)
Build Safer, Smarter Networks With Advanced Junction Box Solutions
Canadian projects face unique demands: freeze–thaw, coastal salt, heavy vehicles, and strict inspection regimes. As outlined above, the right junction box materials, ratings, and details make the difference between chronic failures and worry-free operation. If you need proven durability and compliance for municipalities, utilities, and industrial sites, partner with a Canadian-proven supplier.
Explore our heavy-duty junction boxes and service boxes & vaults engineered for Canadian conditions—lightweight to install, corrosion-resistant, and built to the ratings your AHJ expects. Visit CIF Composites to get specifications or discuss a custom solution.
Frequently Asked Questions
What is the primary function of a junction box?
To enclose and protect electrical connections while keeping them accessible for maintenance and inspection in line with the Canadian Electrical Code.
What materials are commonly used to construct junction boxes?
Polymer concrete composites, galvanized steel, FRP (market alternative), and cast aluminium. Selection depends on environment, corrosion risk, load, and required Type/IP rating. CIF manufactures polymer concrete composite solutions.
How do junction boxes contribute to electrical safety?
They isolate live parts, aid bonding/grounding, protect from environmental damage, and support compliant terminations—reducing the likelihood of shocks, arcs, and fires.
Why are junction boxes essential in municipal infrastructure?
They coordinate power, lighting, traffic, telecom, and sensor networks while meeting Canadian ratings and access requirements, enabling safe maintenance and future upgrades.
