Pro-Eco-Lite™ Service Boxes & Vaults

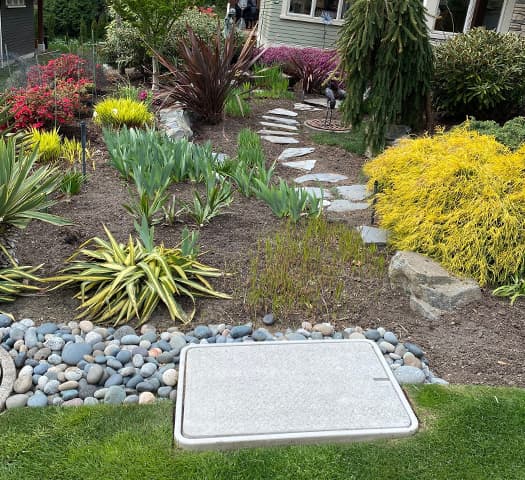

Installed service box on residential boulevardPro-Eco-Lite™ service boxes and vaults combine the strength of concrete with the lightweight characteristics of plastic. They are easy to install, lightweight, non-conductive and manufactured from all non-corrosive materials. Pro-Eco-LiteTM service boxes and vaults are static load tested to 20,000 lbs with minimal deflection. Excellent for installations in soft soil conditions, remote locations, high-traffic areas, and residential and commercial developments. Ideal for telecom, fibre optic and water utility applications.

Design: Durable lightweight composite material reinforced with polymer concrete, prefabricated design, combines the strength of concrete with the lightweight characteristics of plastic.

Features: Manufactured with all non-corrosive materials, load rated to 20,000 lb static load. Suitable for communication conduit, fibre, and water meter/valve installations.

​Benefits: Prefabricated, easy to install, performs well in hot and cold climates, gravel, boulevards, concrete/asphalt driveways, sidewalks and parking lots.

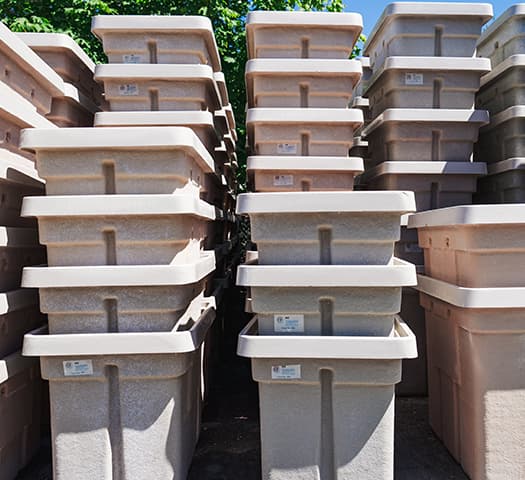

Stacked up services boxesEnvironmental Benefits: Less shipping and handling costs, less breakage and waste compared to precast concrete, non-corrosive, less heavy equipment needed for installations.

Installation: Pro-Eco-LiteTM service boxes and vaults require less labour and equipment to ship, handle and install. They can be easily maneuvered by hand or with on-site machinery.

​Options: Change in grade risers, top repairs, and overbuilds.

Resources

23 Series

​Model numbers

(service box and lid complete)

  • 2335PL: 890 mm (35") deep service box. Weight = 140 lbs
  • 2335PLA: 890 mm (35") deep bottomless service box. Weight = 139 lbs
  • 2335PLOC: 890 mm (35") deep service box with 3M locator cast into the lid. Weight = 140 lbs
  • 2335PLALOC: 890 mm (35") deep bottomless service box with 3M locator cast into the lid. Weight = 139 lbs
  • 2335MOBPL: 890 mm (35") deep bottomless service box with a separate base for overbuild applications. Weight = 155 lbs
  • 2329PL: 735 mm (29") deep service box. Weight = 125 lbs
  • 2329MOBPL: 735 mm (29") deep bottomless service box with a separate base for overbuild applications. Weight = 150 lbs
  • 2324PL: 600mm (24”) deep service box. Weight = 120lbs
  • 2324PLA: 600mm (24”) deep bottomless service box.  Weight = 19lbs
  • 2324PLALOC: 600mm (24”) deep bottomless service box complete with 3M locator cast into the lid. Weight = 120lbs

​23 Series Product Options

  • Anti-Skid Lids
  • 3 available service box depths: 24”, 29” and 35”
  • Top Repairs - 23TR (available on none locking models)
  • Stacking Risers (8") - CIG8 (available on none locking models)
  • 3M Locators cast into lids
  • Overbuild models (service box c/w separate base) for 24”, 29” and 35” depths

150 Series

Model numbers

(service vault and lid complete)

  • 150SBL: 711 mm (28") deep service vault, X-member and two lids. Weight = 295 lbs
  • 150SBLOC: 711 mm (28") deep service service vault, X-member and two lids with 3M locator. Weight = 295 lbs
  • 150SBLALOC: 711 mm (28") deep bottomless service vault, X-member and two lids with 3M locator. Weight = 292 lbs

150 Series Product Options​

  • Risers available: 6”, 12”, 18”, 24"
  • 3M Locators cast into the lid
  • Anti-skid lid coating

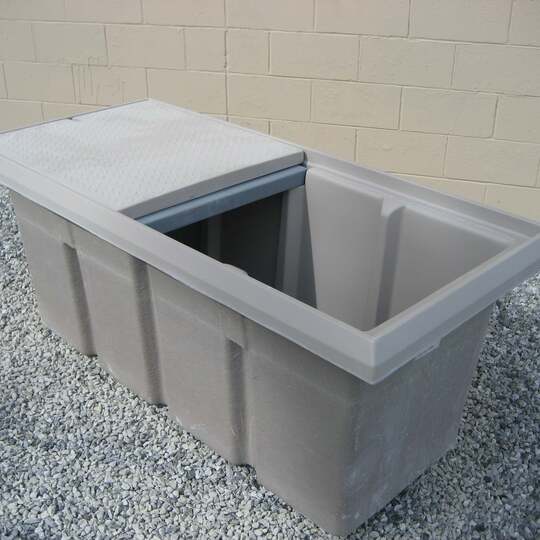

150 Series

200 Series

​Model Numbers

  • 200SBL: 2 Lids and cross member
  • 200SBLA: Bottom cut out, 2 lids and cross member
  • 200300SBR: 12” Riser
  • 200600SBR: 24” Riser
  • 200KSBLL: Kiosk mount and locking lid

​200 Series Product Options

  • Risers available: 6”, 12”, 18”, 24”
  • 3M Locators cast into the lid
  • Anti-skid lid coating
  • 200 series service vault available in 28.5” depth. Load rated to 20000 lb static load

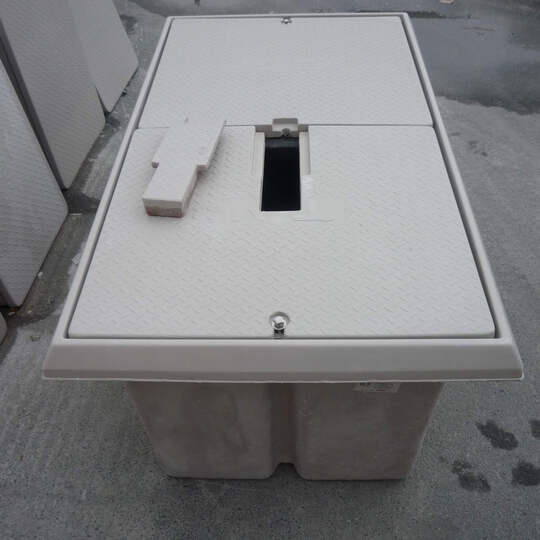

200 Series
