What is a Headwall? Understanding Its Role in Infrastructure
Every drainage system in Canada relies on sturdy structures to keep water moving safely and efficiently, and headwalls are at the heart of this process. In Canadian conditions—freeze–thaw, de-icing salts, variable soils, intense rainfall events—properly designed headwalls can reduce maintenance needs and extend the life of culverts and adjacent infrastructure. They are far more than concrete barriers: geometry, materials, and placement turn headwalls into tools that protect roads, bridges, fish habitat, and sites across diverse climates from the Pacific to the Atlantic and the North.
Table of Contents
- Defining A Headwall: Structure And Purpose
- The Importance Of Headwalls In Drainage Systems
- How Headwalls Enhance Water Flow Management
- Materials And Design Considerations For Headwalls
- Real-World Applications And Case Studies Of Headwalls
Quick Summary
| Takeaway | Explanation (Canada) |
|---|---|
| Headwalls stabilize drainage systems | They protect culvert inlets/outlets against erosion, frost heave, and impact—supporting long service life in Canadian climates. |
| Materials influence performance | Reinforced concrete and polymer concrete composites are both used in Canada; selection depends on freeze–thaw, salt exposure, loads, and constructability. |
| Hydraulic design matters | Geometry, aprons, and energy dissipation reduce turbulence and scour, aligning with provincial/MTO/MoTI guidelines and TAC practices. |
| Environmental protection is integral | Headwalls help control sediment and protect banks; projects must consider fish passage (Fisheries Act), riparian setbacks, and ESC best practices. |
| Good design lowers life-cycle cost | Fit-for-climate materials and details reduce washouts, settlement, and repairs—key for northern, coastal, and prairie conditions. |
Defining a Headwall: Structure and Purpose
A headwall is a structural component at the inlet or outlet of a culvert or storm pipe. In Canada, its design is guided by provincial transportation manuals (e.g., BC MoTI, Ontario MTO) and national references such as the Transportation Association of Canada (TAC) drainage guidance. Headwalls manage hydraulic transitions, resist erosion, and anchor the pipe in place, while accommodating local frost, loads, and habitat constraints.
Core Structural Characteristics
Common Canadian headwall features include:
- Vertical or flared faces at pipe openings
- Wing walls sized for site geometry and soils
- Aprons/toe walls and riprap or articulated mats for scour control
- Foundations designed for frost depth and settlement
- Smooth transitions that protect pipe ends and minimize energy loss
Dimensions and reinforcement are based on loads (including traffic), hydraulic forces, frost action, and geotechnical conditions. Concrete materials and exposure classes typically follow CSA A23.1/A23.2; culvert and headwall loads may reference CSA S6 Canadian Highway Bridge Design Code where applicable.
Functional Purpose in Infrastructure
Headwalls in Canadian projects typically:
- Stabilize soils around pipe inlets/outlets and resist frost jacking
- Control velocities/turbulence and reduce local scour
- Protect pipe ends from impact and buoyancy/uplift
- Provide defined transitions for fish passage where required
Well-designed headwalls reduce maintenance by preventing undermining, bank failures, and sediment buildup—key drivers of call-outs and road closures.
The Importance of Headwalls in Drainage Systems
Across municipalities, resource roads, and highways, headwalls are a front-line defense against water-related damage. They are part of a system that includes culverts, ditches, channels, and energy dissipation works.
Environmental Protection and Water Management
- Reduce sediment transport and bank erosion at outlets
- Create controlled transition zones that protect riparian areas
- Enable fish passage solutions (weirs, baffles, roughened beds) to comply with the Fisheries Act and provincial habitat policies
- Support stormwater quality goals when integrated with ESC measures
Infrastructure Preservation and Safety
- Prevent pipe end damage and joint separation from ice or debris
- Limit roadway/embankment washouts and sinkholes
- Accommodate traffic and maintenance loads where required
- Provide predictable access for inspection and debris clearing
How Headwalls Enhance Water Flow Management
Hydraulic Flow Optimization
- Geometry reduces entrance/exit losses and helps maintain capacity
- Aprons and stilling features dissipate energy to protect channels
- Flared wings align approach flow and minimize eddies/turbulence
- Details are sized to local IDF curves and climate-resilience targets
Erosion Prevention and Soil Stabilization
- Toe walls and keyed aprons prevent undermining in scour-prone soils
- Riprap gradations and geotextiles are selected to provincial specs
- Frost-resistant foundations limit heave and differential movement
- Bank armouring ties into upstream/downstream works for continuity
Learn more about CIF headwall solutions engineered for Canadian environments.
Materials and Design Considerations for Headwalls
Material selection balances durability, installation constraints, environmental exposure, and life-cycle cost.
Material Selection Strategies
- Reinforced concrete (CSA A23.1 exposure classes): robust, well-understood; heavier installs
- Polymer concrete composites: corrosion- and salt-resistant, lightweight, rapid installation
- Precast concrete: standardized elements and faster construction
- Reinforced masonry: select applications; consider freeze–thaw and detailing
Comparison overview (typical for Canadian projects):
| Material Type | Strength & Durability | Weight | Install Complexity | Salt & Freeze–Thaw Resistance |
|---|---|---|---|---|
| Reinforced Concrete | High | Heavy | Moderate | Good (with proper class/air) |
| Polymer Concrete Composites | High for weight | Light | Low | Excellent |
| Precast Concrete | High | Heavy | Low–Moderate | Good (spec-dependent) |
| Reinforced Masonry | Moderate–High | Heavy | Moderate | Moderate (detail-dependent) |

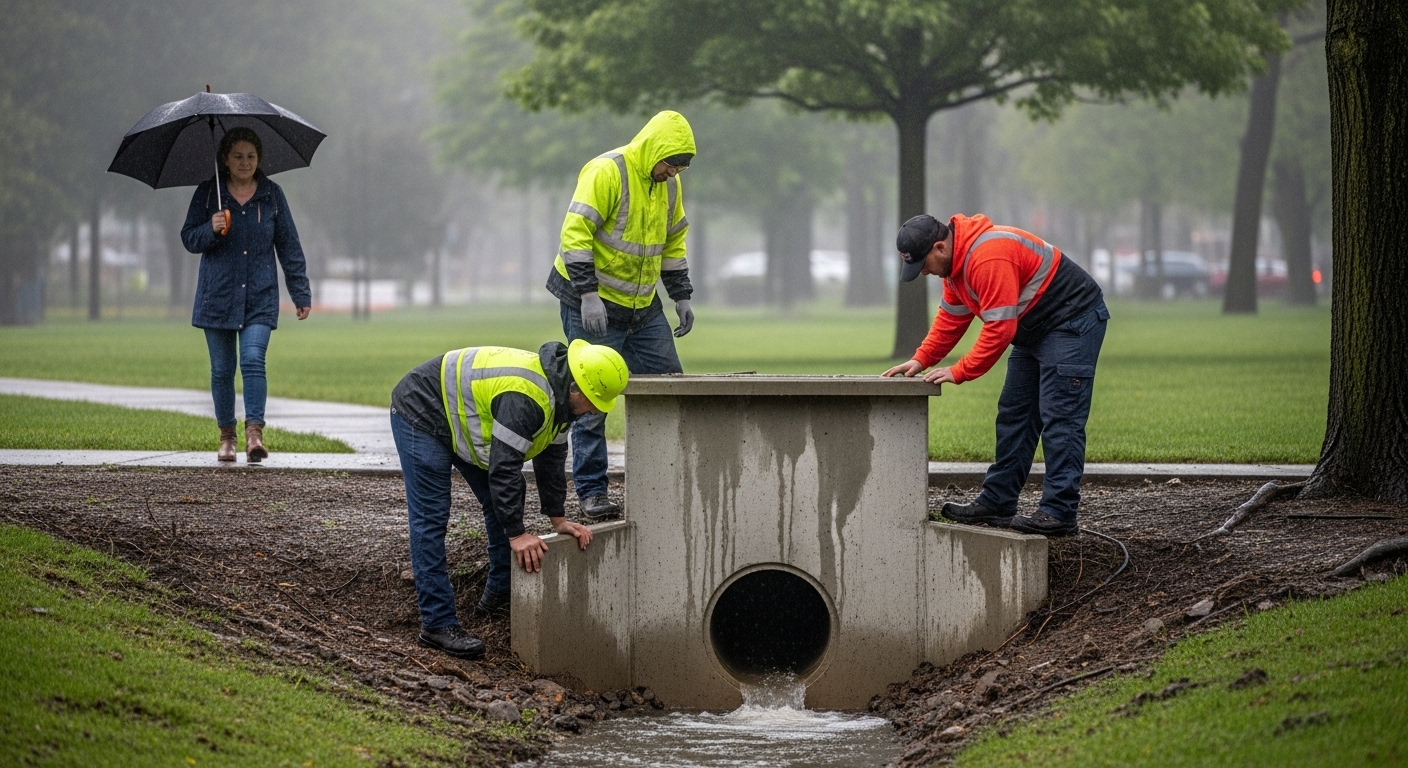

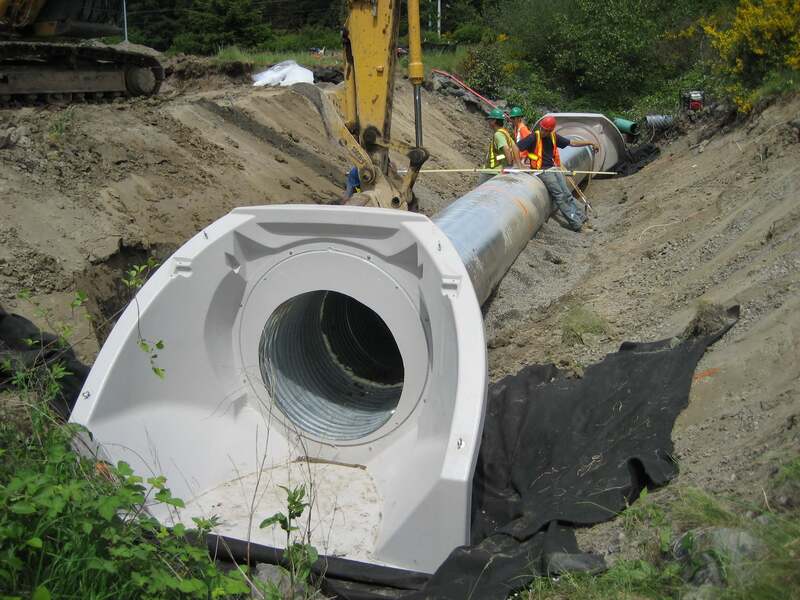

Polymer concrete composites offer lightweight, corrosion-resistant alternatives that simplify installation and stand up to Canadian freeze–thaw and de-icing salts.
Hydraulic Performance Considerations
- Design flows and IDF data (Environment and Climate Change Canada; municipal standards)
- Headloss coefficients, approach alignment, and outlet protection
- Soil parameters (erosion potential, frost susceptibility, settlement)
- Fish passage criteria where watercourses are involved
Geometry (angles, lengths, radii) and armouring are calibrated to local hydrology and agency standards (TAC; provincial drainage manuals; municipal design guides).
Real-World Applications and Case Studies of Headwalls
Transportation Infrastructure Applications
- Highway/arterial drainage at inlets/outlets and median cross drains
- Rail and resource road culverts subject to debris/ice loading
- Bridge approach protection and embankment stability
- Stormwater outfalls for urban corridors and industrial sites
Environmental Management Strategies
- Watershed protection and flood conveyance upgrades
- Bank stabilization and habitat enhancement with fish-friendly details
- ESC integration (silt fencing, coir logs, staged works, isolation)
Ready To Solve Headwall Challenges With Advanced Composite Solutions?
Undermined outlets. Recurrent scour. Winter heave. If your site faces these Canadian realities, you need headwalls designed for salt, frost, and variable flows. CIF Composites’ lightweight, standards-compliant polymer concrete headwalls speed installation, resist corrosion, and help you meet agency expectations.
See how engineered products perform in harsh conditions and tight work windows. Review case studies such as San Angelo, Texas and Alpharetta, Georgia, then talk to us about Canadian specs, loads, and frost. Visit CIF Composites for details or to request a quote.
Frequently Asked Questions
What is a headwall in civil engineering?
A headwall is a structure at a culvert or storm pipe inlet/outlet that stabilizes soils, controls hydraulics, and protects infrastructure. Canadian designs follow TAC guidance and provincial/municipal standards.
What materials are commonly used to construct headwalls?
Reinforced concrete (per CSA A23.1/A23.2), precast elements, and polymer concrete composites are common. Selection depends on freeze–thaw exposure, salts, loads, and constructability. CIF manufactures polymer concrete composite solutions.
How do headwalls enhance water flow management?
By shaping and armouring the transition, headwalls reduce turbulence and scour, preserve capacity, and protect channels—key under Canadian IDF events and ice/debris conditions.
What role do headwalls play in environmental protection?
They limit sediment release, protect riparian banks, and can be detailed to support fish passage. Works in and about a stream may require DFO review and provincial permits.
